Powerful. Versatile. With four gears for every application. And with the best gear change you have ever operated. Whether you are working on wood, metal or masonry – thanks to the axial hammer feature that can be switched on: The TPC is extremely durable and, thanks to its brushless EC-TEC motor, has extreme resilience and endurance. The large number of attachments, combined with perfectly matched accessories, make the QUADRIVE an unrivalled hammer drill for a wide range of possible uses. Maintain control with our intelligent Kickbackstop which helps to minimize the risk of the drill twisting out of your hand. We are confident that this is the best drill that Festool has ever built!

Features:
Robust: Resilient four-speed metal gearbox, also fully covered by the comprehensive support provided by Festool Service
The depth stop and eccentric adapter also enable depth-limited screwdriving and screwdriving close to edges
Mobile: The QUADRIVE comes in a Systainer³ and so can be seamlessly integrated along with other Systainer-based products for easy carry or fitted to a CT Mobile Dust Extractor, MW 1000 Mobile Workcenter, SYS-Cart, or SYS-Roll
Versatile: Thanks to the FastFix interface, quick conversion without the need for tools for drilling, screwdriving, angular drilling and angular driving
Powerful for work with screws and drills with larger diameters, rapid for clean work progress when working with small diameters
Maximum performance: Thanks to the extremely powerful, brushless, and therefore long-lasting, EC-TEC motor
The QUADRIVE with four gears for every working situation: From screwdriving with 442.5 in-lbs (50 Nm) torque in first gear to precise drilling at 3600 rpm in fourth gear
For an even wider range of applications: Hammer function that can be activated for drilling into masonry

Specifications:
Battery voltage 18 V
Gears 4
Idling speed, 1st gear/2nd gear 0 - 500/0 - 800 RPM
Idling speed, 3rd/4th gear 0 - 2350/0 - 3600 RPM
Max. number of strokes 57 600 RPM
Drilling diameter, wood/steel 2-3/4" (70 mm) / 1/2" (13 mm)
Drilling diameter in brickwork 3/8" (10 mm)
Torque adjustment 1st/2nd gear 17.7 in-lb - 177 in-lb (2 - 20 Nm) / 17.7 in-lb - 177 in-lb (2 - 20 Nm)
Max. torque, wood/steel 442.5 / 663.8 (50/75 Nm)
Chuck range 1/16" - 1/2" (1.5 - 13 mm)
Battery capacity 4,0 Ah
Weight with battery 4.18 lbs (1,9 kg)

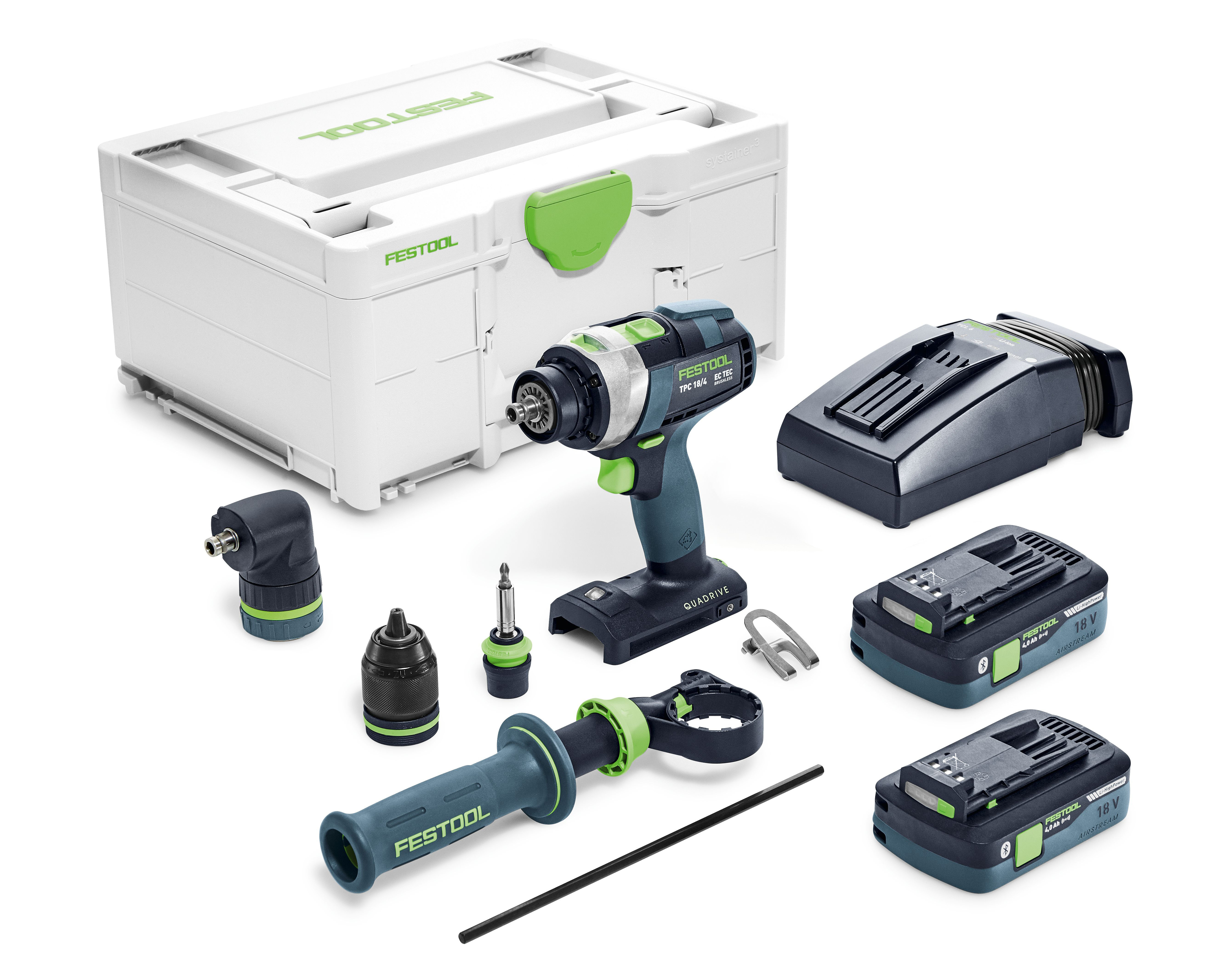

Includes:
2 x BP 18 Li 4,0 HPC-ASI battery pack; rapid charger TCL 6; CENTROTEC Chuck; CENTROTEC BH 60 CE Imp magnetic bit holder; FastFix keyless chuck 1/2" (13 mm); bit PH 2; additional side-mounted hand grip; FastFix Right Angle Chuck; Belt clip; Systainer SYS3 M 187
